41W x 25-1/2L x 13D in. Evenheat Kiln w/Lid Lifter, TAP II Touchscreen Controller
EVEN TGTS254113 | Bin Location: TKILN
Sale Unit: Each
$5,516.00Additional Information
GTS 2541: Evenheat's Original Large, Oval-shaped Kiln
Measuring 41 wide x 25.25 long x 13.5 in. deep the GTS 2541 is Evenheat's original large, oval shaped kiln. Features elements in the lid and sides. "The Oval" caters to those working with much larger glass pieces and production. Features more precise regulation of temperature rise and fall, extra power for heavy loads, tall and regular slumps, and multi-shelved firing. Use the GTS2541-13 to fuse large projects, slump, paint, pate de Verre or anneal.
Available in two controller options:
-
TAP II Touchscreen Controller (EVEN TGTS254113)
-
RampMaster with Express Mode (EVEN GTS2541-13)
GTS 2541-13 Features:
- Lift lid lifter included
- Swing View Adjustable Control
- Wide Lid Handle
- Full Stainless Jacket
- Corner Mounting Technique
- Large Size
- Responsive Thermocouples
- Top and Side Fire Configuration
- Excellent Temperature Distribution
Chamber Size
41" W x 25.25" L x 13.5" D - 7.2 cubic feet
(104.1cm Wide x 64.1cm Long x 34.3cm Deep - 204L)
North American Electrical Specifications
Operating Voltage: 240V, single phase
Amperage: 40A
Watts: 9600W
Power Cord Plug Style: NEMA 6-50P
Maximum Temperature 1800F (982°C)
Shipping Weight 320 lbs.
This Item Ships Via Truck Only
Does NOT ship UPS - Ships by truck only (motor freight). Packing charges may apply. Also available for pickup.

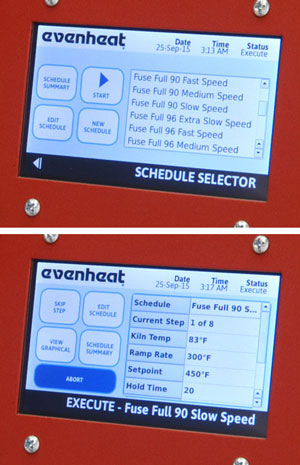

TAP II controller with touchscreen technology
This TAP II controller is equipped with touchscreen technology and wi-fi compatibility. The Touchscreen displays all programming and use commands in full text for easy use and understanding. The TAP II Controller menu driven software is well laid out, logical and very intuitive. During standby and run operations the TAP II Controller displays large format, high contrast screens that display kiln temperature and current state.
The TAP II Controller includes pre-loaded firing schedules and the ability to create you own, unique firing schedules. During an actual firing the TAP offers on-the-fly changes including adjusting set point temperatures, hold times and skipping ahead. The controller includes kiln error information and diagnostics features. Diagnostics provide a real-time look into the usage of critical kiln components. The TAP II Controller monitors many functions and allows you to calculate your actual cost per firing.
The TAP II Controller is designed for computer networking via USB wi-fi or ethernet connections. This connectivity will allow for monitoring the kiln, developing and editing programs, or performing TAP II Controller functions from a network connected computer, tablet or mobile device.
